234418-M-SP 9014060mm double direction axial angular contact thrust ball bearings

Name: 234418MSP 9014060mm double direction axial angular contact thrust ball bearings
Brand: MONTON
Price: 1 USD

234418-M-SP 90*140*60mm double direction axial angular contact thrust ball bearings Manufactures

Brand Name : MONTON

Model Number : 234418-M-SP

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : Ask

Payment Terms : T/T

Supply Ability : 10000PCS/WEEK

Delivery Time : 7-35 days

Packaging Details : Singlebox

Number of row : Double Row

Precision rating : P4,P5

Seals type : Open

Structure : Angular Contact

Type : Ball

Application : Machine Parts,Air compressor,Reducer,Pump,Car wheel

Sample : Avaliable

Package : Standard package

Vibration : Z1 Z2 V1 V2

Clearance : C0 C2 C3 C4 C5

Contact Now

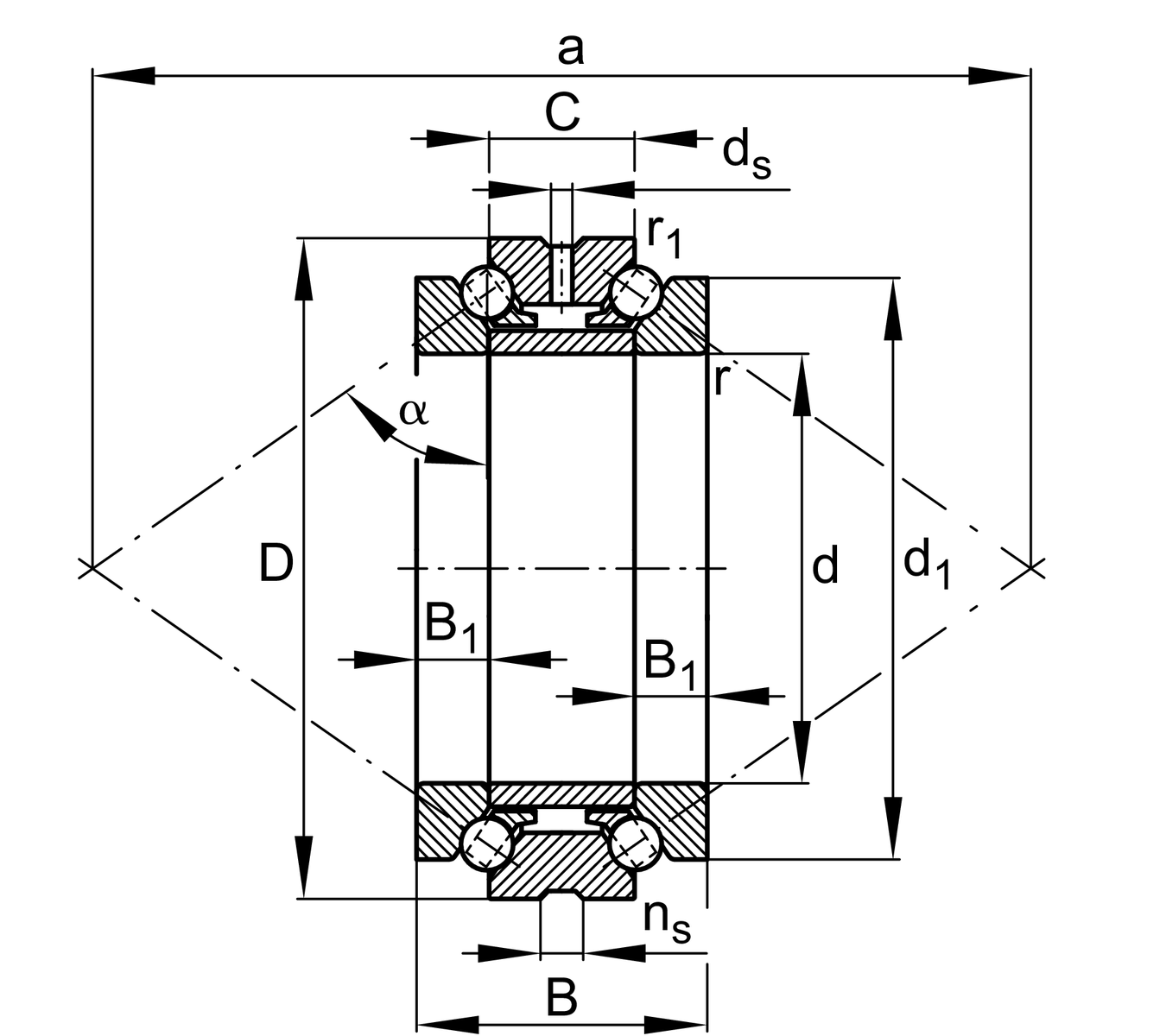

234418-M-SP 90*140*60mm double direction axial angular contact thrust ball bearings

90 mm

Bore diameter

140 mm

Outside diameter

60 mm

Width

30 mm

Width, outer ring

66,000 N

Basic dynamic load rating, axial

C0a

213,000 N

Basic static load rating, axial

Cua

18,200 N

Fatigue load limit, axial

nG Grease

4,000 1/min

Limiting speed for grease lubrication

nG Oil

5,300 1/min

Limiting speed for oil lubrication

2.914 kg

Weight

123 mm

Rip diameter shaft washer

15 mm

Height wave disc

rmin

1.5 mm

Minimum chamfer dimension

r1 min

0.3 mm

Minimum chamfer dimension

4.8 mm

Diameter lubrication hole

9.5 mm

Width of lubricating groove

110.5 mm

Diameter shaft shoulder

h12

Diameter shaft shoulder clearance

130.5 mm

Shoulder diameter outer ring

H12

Shoulder diameter outer ring clearance

ra max

1.5 mm

Maximum recess radius

ra1 max

0.3 mm

Maximum recess radius

60 °

Contact angle

232.5 mm

Distance between the apexes of the pressure cones

708 N/µm

Axial rigidity

KaE

1,326 N

Lift-off force

465 N

Preload force

The double direction precision bearings are therefore particularly suitable for precision spindle bearing arrangements in machine tools. In this case, the axial angular contact ball bearing is combined with a double row cylindrical roller bearing with a tapered bore, which supports the radial forces.
Sealing

Axial angular contact ball bearings are of an open design.

The bearings can be lubricated with oil or grease. Higher speeds can be achieved with oil lubrication. In order to allow oil to flow between the two rows of balls, the housing locating washer has a lubrication groove and lubrication holes.

At high speeds, overlubrication of the radial bearing can be prevented if the installation space is separated between the axial angular contact ball bearing and the cylindrical roller bearing.
1. Type:axial angular contact ball bearing

2. Application: CNC machine,precision equipment and so on

Features:

(1) Double direction

(2) Super precision

(3) Brass cage

(4) Competitive price

(5) Long use life
