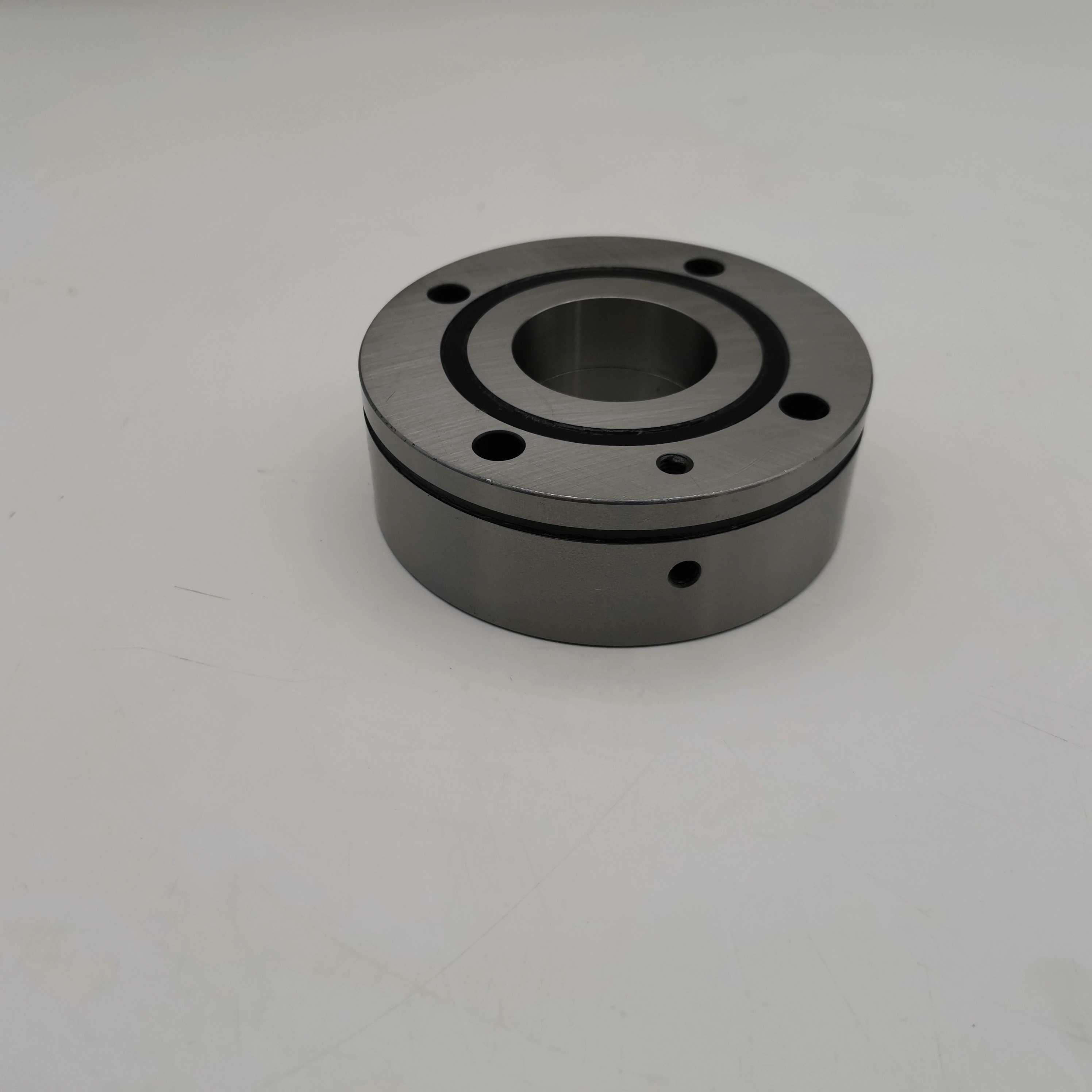

ZKLN2052-2RS/P4 axial angular contact ball bearings for the machines tools industry

Product Categories
LUOYANG MONTON BEARING SCIENCE & TECHNOLOGY CO.,LTD.
Contact Now

ZKLN2052-2RS/P4 axial angular contact ball bearings for the machines tools industry

  • 1
  • 2
  • 3

Brand Name : MONTON

Model Number : ZKLF2052-2RS/P4

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : USD

Payment Terms : T/T

Supply Ability : 10000PCS/WEEK

Delivery Time : 7-35 days

Packaging Details : Singlebox

Material : GCr15

Accuracy : P4

Structure : Angular contact ball bearings

Contact angle : 60

Customers : DMG,FFG,etc

Market : Germany,Japan,Italy,USA,etc

Contact Now

ZKLN2052-2RS/P4 axial angular contact ball bearings for the machines tools industry

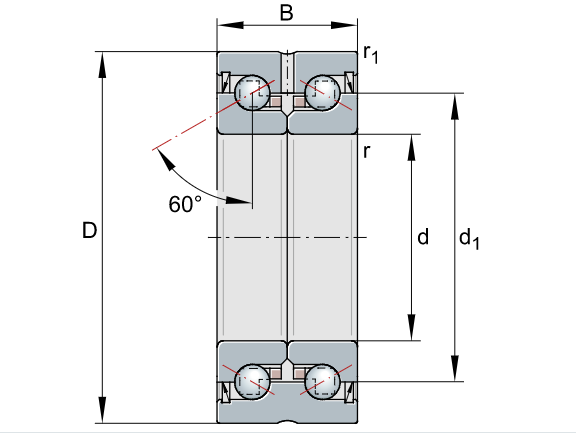

d 20 mm Tolerance: 0/-0,005
D 52 mm Tolerance: 0/-0,010
B 28 mm Tolerance: 0/-0,25
60 ° Contact angle
Da max 43 mm
d1 34,5 mm
da min 25 mm
r1 min 0,6 mm
rmin 0,3 mm

ZKLN2052-2RS/P4 axial angular contact ball bearings for the machines tools industry

m 0,31 kg ≈ Mass
Ca 28500 N Basic dynamic load rating, axial
C0a 47000 N Basic static load rating, axial
Cua 2850 N Fatigue limit load, axial
nG Fett 6600 1/min Limiting speed for grease lubrication
nϑ 3000 1/min Thermally safe operating speed
MRL 0,3 Nm Bearing frictional torque
caL 650 N/µm Axial rigidity
ckL 140 Nm/mrad Tilting rigidity
Mm 0,273 kg * cm^2 Mass moment of inertia for rotating inner ring
2 µm Axial runout
The axial runout data for screw drive bearing arrangements are based on the rotating inner ring.
ZM20 Recommended INA precision locknuts with radial clamping

The recommended INA precision locknuts are not included in the scope of delivery and must be ordered separately.
AM20 Recommended INA precision locknuts with axial clamping

The recommended INA precision locknuts are not included in the scope of delivery and must be ordered separately.
MA 18 Nm Tightening torque

Only valid in conjunction with INA precision locknuts.
Observe the guidelines on locating/locating bearing arrangements.
8258 N Requisite locknut force, axial

The requisite axial locknut force must be observed when using other locknuts.
